Reactive Gas Flows Fluctuations in Hydrogen Powered Wankel – Experimental Research using a Novel Flowmeter
Article Sidebar
Main Article Content
Abstract

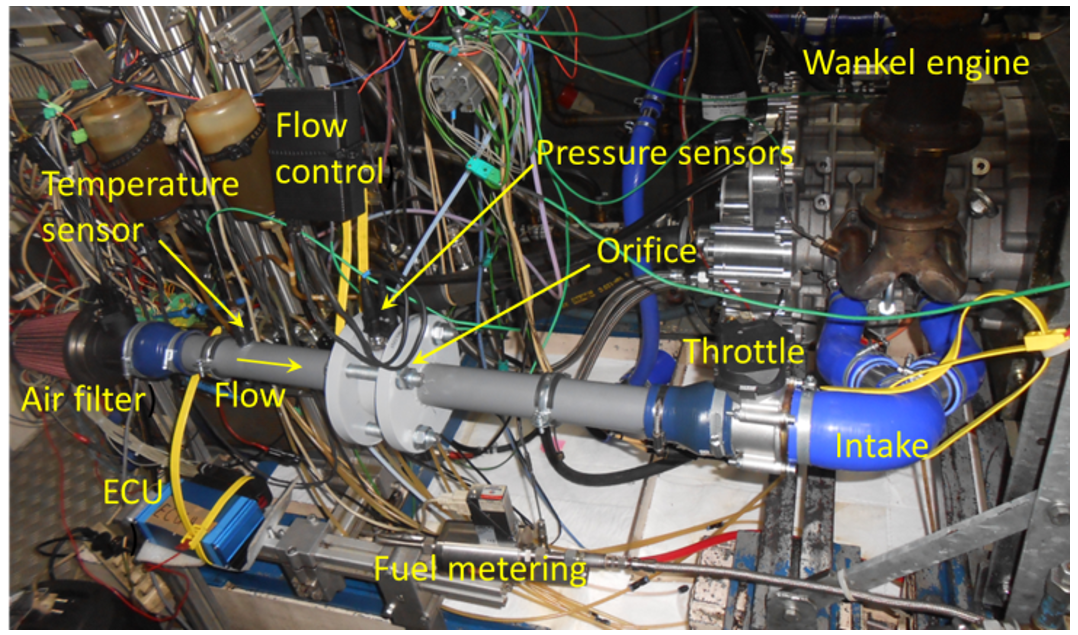

This paper presents experimental research of gas flow fluctuations on a two-rotor direct injected Wankel engine fueled with Hydrogen using special mass flow meter. The flow parameters of two reaction components - air and pure Hydrogen were measured at 9 engine operation points. The research of reacting gases fluctuations focuses on testing and measuring of Hydrogen pressure oscillation and intake air phenomena by means of air mass flow oscillation. For this purpose, a special orifice flow meter measurement system was developed to evaluate the intake-air performances under consideration of intake air pressures and engine temperatures. The experimental engine setup is discussed in the first part of the paper. Then, the H2-direct injection stochastic behavior and intake flow fluctuations were measured and analyzed to explain the combustion phenomena and engine performance, which were compared with the experimental data. The investigation confirmed that the developed airflow measurement system can be applied to understand behavior of the H2-engine and to improve the quality of the engine filling, combustion and resulting efficiency.
Article Details
This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
References
Antoshkiv O. Untersuchung der Zündung in einer neuartigen gestuften Brennkammer. Dissertation Brandenburg University of Technology Cottbus. Germany; 2007.
Antoshkiv O, Himmelberg A, Berg HP. Optimierung der Zündkerzenposition in einem Wankelmotor. Motorische Verbrennung. 2007;7.1:351–360.
Berg HP, Antoshkiv O, Himmelberg A, Izweik HT, Poojitganont T. Brennverfahrensentwicklung für eine neuartige Kreiskolbenmotorenfamilie. ATZ MTZ Konferenz Virtual Powertrain Creation. Germany; 2008.
Berg HP, Izweik HT, Poojitganont T, Antoshkiv O. Anwendung fortschrittlicher Simulationswerkzeuge in der Wankelmotorenentwicklung. ATZ MTZ Konferenz Virtual Powertrain Creation. Germany; 2006.
Berg HP, Antoshkiv O, Steinberg P, Sigmund E. Entwicklung von Multifuel Power Unit Familien für die Anwendung in zukünftigen hybriden Gasfahrzeugen. Gasfahrzeuge Die Schlüsseltechnologie auf dem Weg zum emissionsfreien Antrieb der Zukunft. Expert Verlag Renningen; 2008:90–109.
DIN EN ISO 5167-1. Durchflussmessung von Fluiden mit Drosselgeräten Teil 1 Blenden Düsen und Venturirohre mit voll durchströmten Leitungen mit Kreisquerschnitt. 1995.
DIN EN ISO 5167-1 A1 Entwurf. Durchflussmessung von Fluiden mit Drosselgeräten Teil 1 Blenden Düsen und Venturirohre mit voll durchströmten Leitungen mit Kreisquerschnitt. 1997.
Eiermann D, et al. The introduction of a new ultra lite multipurpose Wankel engine. International Congress and Exposition. Michigan United States; 1990.
Gas Flow Tester. Product information GFT 50 25. Available from: http://www.lab-desk.com
Izweik HT. CFD investigations of mixture formation flow and combustion for multi fuel rotary engine. Dissertation Brandenburg University of Technology Cottbus. Germany; 2009.
Mykhalyuk M, Antoshkiv O, Jehring L, Berg HP. Untersuchung des Energieeinsparpotentials eines Turbocompound Antriebes mittels AVL Boost. Wärmemanagement des Kraftfahrzeugs X. Expert Verlag Potsdam; 2016.
Poojitganont T, Antoshkiv O, Watjatrakul B, Berg HP. Efficiency and emission simulations of hydrogen fuel city buses. IOP Conference Series Materials Science and Engineering. 2020;886:012025.
Poojitganont T, Berg HP, Izweik HT, Himmelberg A. Multi fuel Wankel engine for small aircrafts and UAVs applications strategies of the engine development. International Symposium on Air Breathing Engines. Beijing China; 2007.
Soimar M, Eiermann D. High speed heavy fuel family of rotary engines for UAV application. Association for Unmanned Vehicle Systems Conference. Washington United States; 1993.
Tykhan M. New type of piezoresistive pressure sensors for environments with rapidly changing temperature. Metrology and Measurement Systems. 2017;24(1):185–192.
Tykhan M, Markovych V, Heneralov V, Milian M. Device for dynamic calibration of pressure sensors. Metrology and Measurement Systems. 2024;31(4).
Urlaub A. Verbrennungsmotoren Grundlagen Verfahrenstheorie Konstruktion. Springer; 1995.
Wankel Super Tec GmbH. The new generation of Wankel rotary engines. Cottbus Germany; 2024. Available from: http://www.wankelsupertec.com
Yamamoto K. Rotary engine. Sankaido Tokyo; 1981.
