Development of a Force Sensing Resistor (FSR) from Conductive Film for Applications in Physical Therapy
Article Sidebar
Main Article Content
Abstract

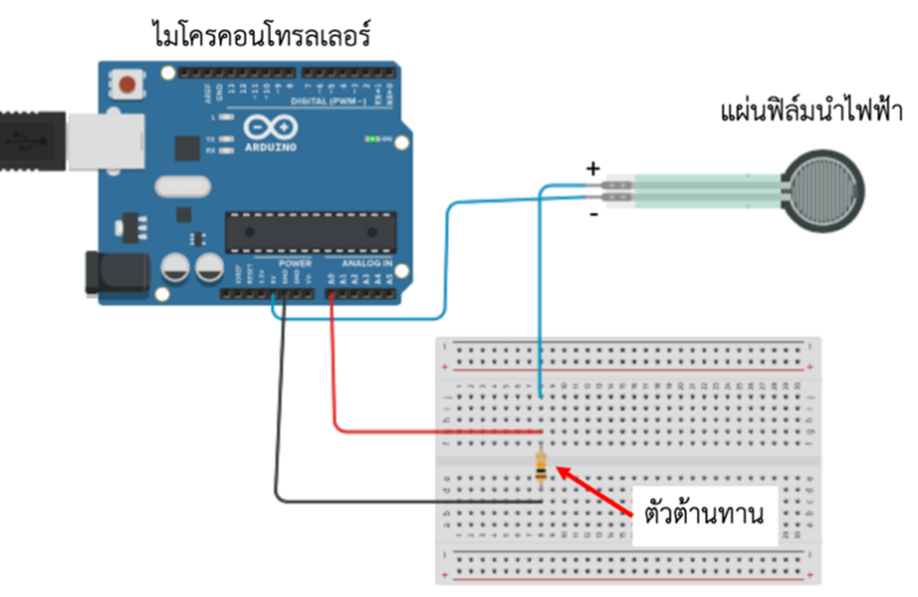

This research focuses on the development and performance evaluation of a Force Sensing Resistor (FSR) based on conductive films for applications in Physical Therapy. Two types of conductive films, Treee MD30-60 and Mommy Sensitive, were tested against reference force values from a Digital Force Gauge (DFG50) under a standard force range of 0 - 60 Newtons. The experiments were conducted on foam substrates with two different elasticity coefficients (soft and hard foam), which functioned as a supportive base to distribute pressure and simulate the elasticity of muscle layers. The statistical data analysis used included the determination of Mean, Standard Deviation (SD), response characteristics analysis, and the Coefficient of Variation (CV) to evaluate the stability and accuracy of the sensors. The results revealed that the Treee MD30-60 film was the most suitable candidate, capable of measuring force across the 0 - 60 N range. It exhibited a non-linear response but demonstrated good repeatability, with a minimum Coefficient of Variation (CV) of 7.98%. Conversely, the Mommy Sensitive film failed to respond effectively on flexible surfaces. Consequently, the researchers utilized the Treee MD30-60 film to develop a 4-point pressure sensing prototype system, processed by an Arduino Mega 2560 microcontroller, capable of displaying real-time force values in Newtons. This prototype demonstrates significant potential for further development into a cost-effective engineering measurement tool and is adaptable for research or Physical Therapy pressure measurement systems requiring high precision.
Article Details
This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License.
References
กิตติพงศ์ ทะนะ. (2562). การพัฒนาวัสดุนำไฟฟ้าบนยางธรรมชาติเพื่อใช้เป็นเซนเซอร์แบบยืดหยุ่น. วิทยานิพนธ์วิทยาศาสตรมหาบัณฑิต, มหาวิทยาลัยธรรมศาสตร์. ปทุมธานี: 87 หน้า
Bednarz III, E., Dietrich, C., Hepner, B., Jr., Patel, J. and Sabouni, A. (2023). Determining Magnitudes of Forces at Known Locations through a Strain Gauge Force Transducer. Sensors 23(16): 7017. doi: 10.3390/s23167017.
Cochrane, C., Lewandowski, M. and Koncar, V. (2010). A Flexible Strain Sensor Based on a Conductive Polymer Composite for in situ Measurement of Parachute Canopy Deformation. Sensors. 10(9): 8291 - 8303. doi: 10.3390/s100908291.
Farooq, M. and Sazonov, E. (2015). Strain Sensors in Wearable Devices. In: Mukhopadhyay, S. (eds) Wearable Electronics Sensors. Smart Sensors, Measurement and Instrumentation 15: 221 - 239. Springer, Cham. doi: 10.1007/978-3-319-18191-2_9.
Klinchongkon, K., Changpuen, P. and Khemmark, S. (2025). The Effects of Carboxymethyl Cellulose Impregnation on the Texture and Rehydration Properties of nata de coco Noodles. Food Biophysics 20(3): 97. doi: 10.1007/s11483-025-09987-2.
Liang, D., Li, C., Han, P., Song, L. and Chen, Y. (2024). Flexible Strain Sensor Based on Metallized Polyurethane Conductive Sponge Using Laser Direct Writing Process. Manufacturing Technology. 24(5): 747 - 754. doi: 10.21062/mft.2024.080.
Rinaldi, A., Tamburrano, A., Fortunato, M. and Sarto, M.S. (2016). A Flexible and Highly Sensitive Pressure Sensor Based on a PDMS Foam Coated with Graphene Nanoplatelets. Sensors 16(12): 2148. doi: 10.3390/s16122148.
Takamatsu, S., Minami, K. and Itoh, T. (2021). Fabrication of highly stretchable strain sensor fiber by laser slitting of conductive-polymer-coated polyurethane film for human hand monitoring. Sensors and Materials 33(3): 1091 - 1102. doi: 10.18494/SAM.2021.2950.
Tan, C., Dong, Z., Li, Y., Zhao, H., Huang, X., Zhou, Z., Jiang, J.W., Long, Y.Z., Jiang, P., Zhang, T.Y. and Sun, B. (2020). A high performance wearable strain sensor with advanced thermal management for motion monitoring. Nature Communications 11(1): 3530. doi: 10.1038/s41467-020-17301-6.
Tang, J., Li, Y., Yu, Y., Hu, Q., Du, W. and Lin, D. (2025). Recent Progress in Flexible Piezoelectric Tactile Sensors: Materials, Structures, Fabrication, and Application. Sensors 25(3): 964. doi: 10.3390/s25030964.
